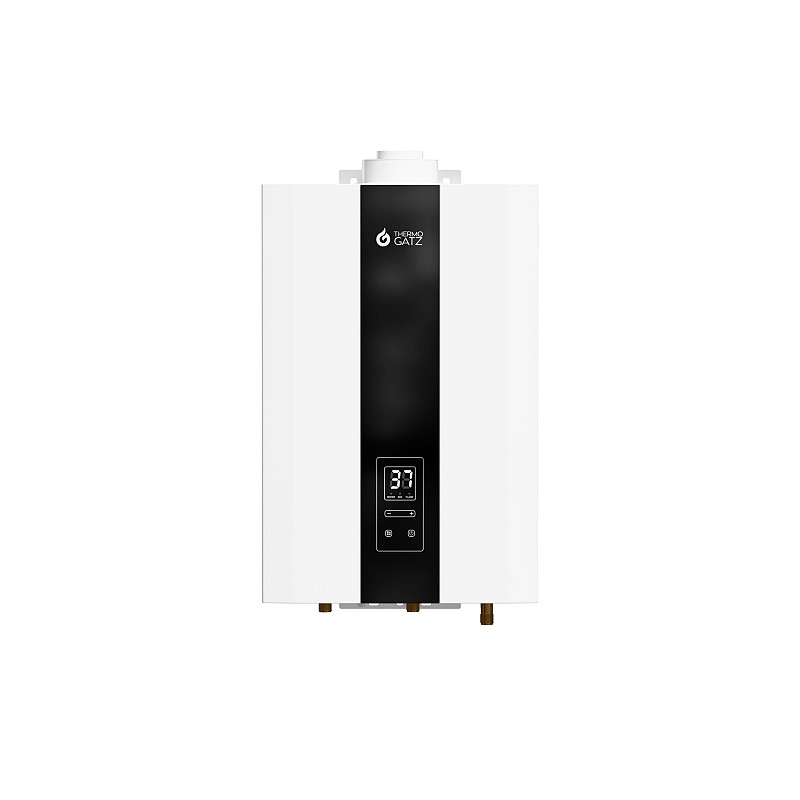

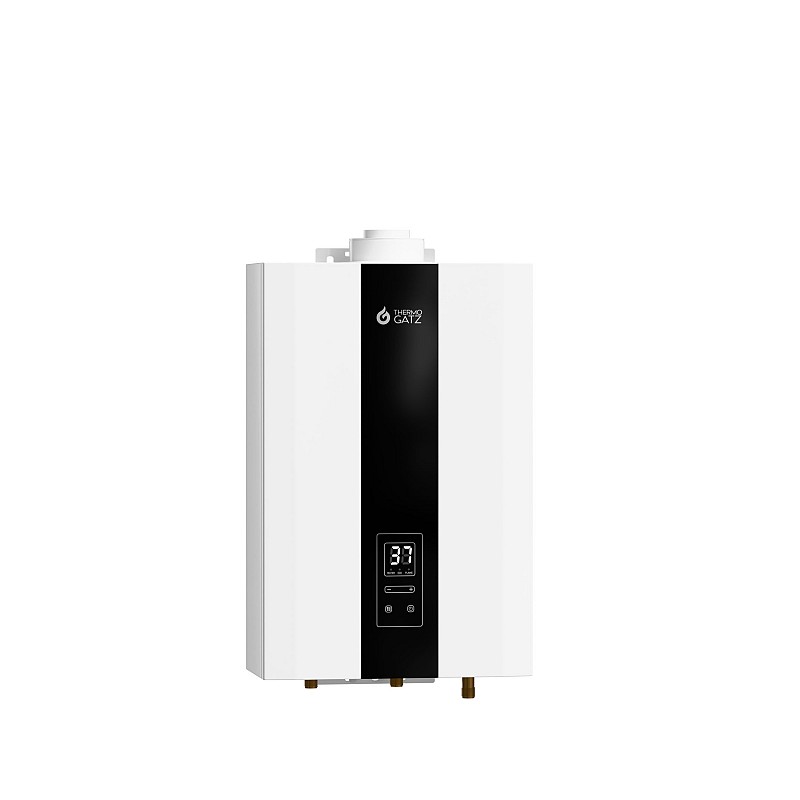

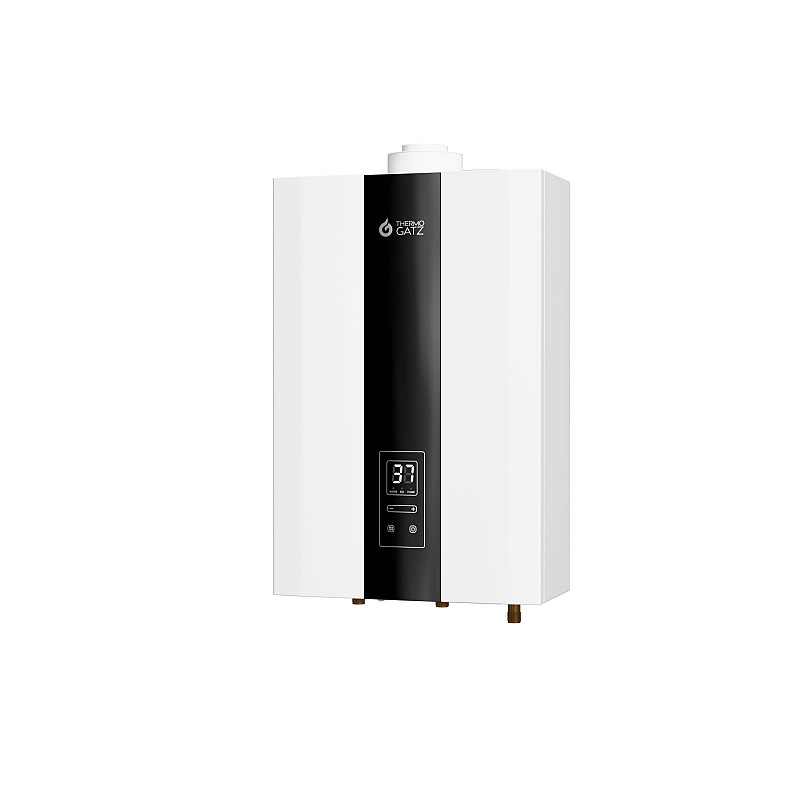

INSTANTANEOUS GAS WATER HEATER G24-LEC + CHIMNEY
Product code: 02.204.507
Brand: THERMOGATZBarcode: 5212024303837
436,00€
Available
436,00€
Instantaneous Gas Water Heater. Thanks to its compact size, its weight is reduced, and space is saved. Installation is regarded easy, use and maintenance are characterized by simplicity. Automatic ignition is activated when the tap opens via an electronic mechanism. Ability to adjust gas power output, without a continuous pilot flame, for economic usage. Option to set standard quantity for the water supply, in order to ensure a steady flow in case of fluctuations in the provider’s supply flow. Simple and easy-to-read LCD screen. Ability of choosing to maintain a constant temperature. Electric installation is required. Pressure switch. Safety valve protects from high pressure.
Rated Heat Output 23kW
Nominal Heat Efficiency 87,5%
Rated Water Output 12L/min
Nominal Gas Pressure NG 20mbar, LPG 28-30/37mbar
Minimum Operation Pressure 0,5bar
Maximum Operation Pressure 6,5bar
Over Heat Protection
Flue Anti-Block Protection
Over Water Pressure Protection
Anti-Dry Burning Protection
Flame Out Protection
Electric Leakage Protection
Flue pipe diameter request 60/100mm
Fan Force Chinmney Type
Heat Exchanger 2.1kg Oyxgen free
Burner - 6 Rows Low Nox
Burner Pipe: Aluminum
Valve Type Water Flow Sensor+Proportional Valve
Display LED (touch control)
On/Off Switch
Rated Electricity Supply: 220V/50hz
Ignition Pin: Double
Ignitor Type: Fan Force
Certifications: CE-GAR/ERP

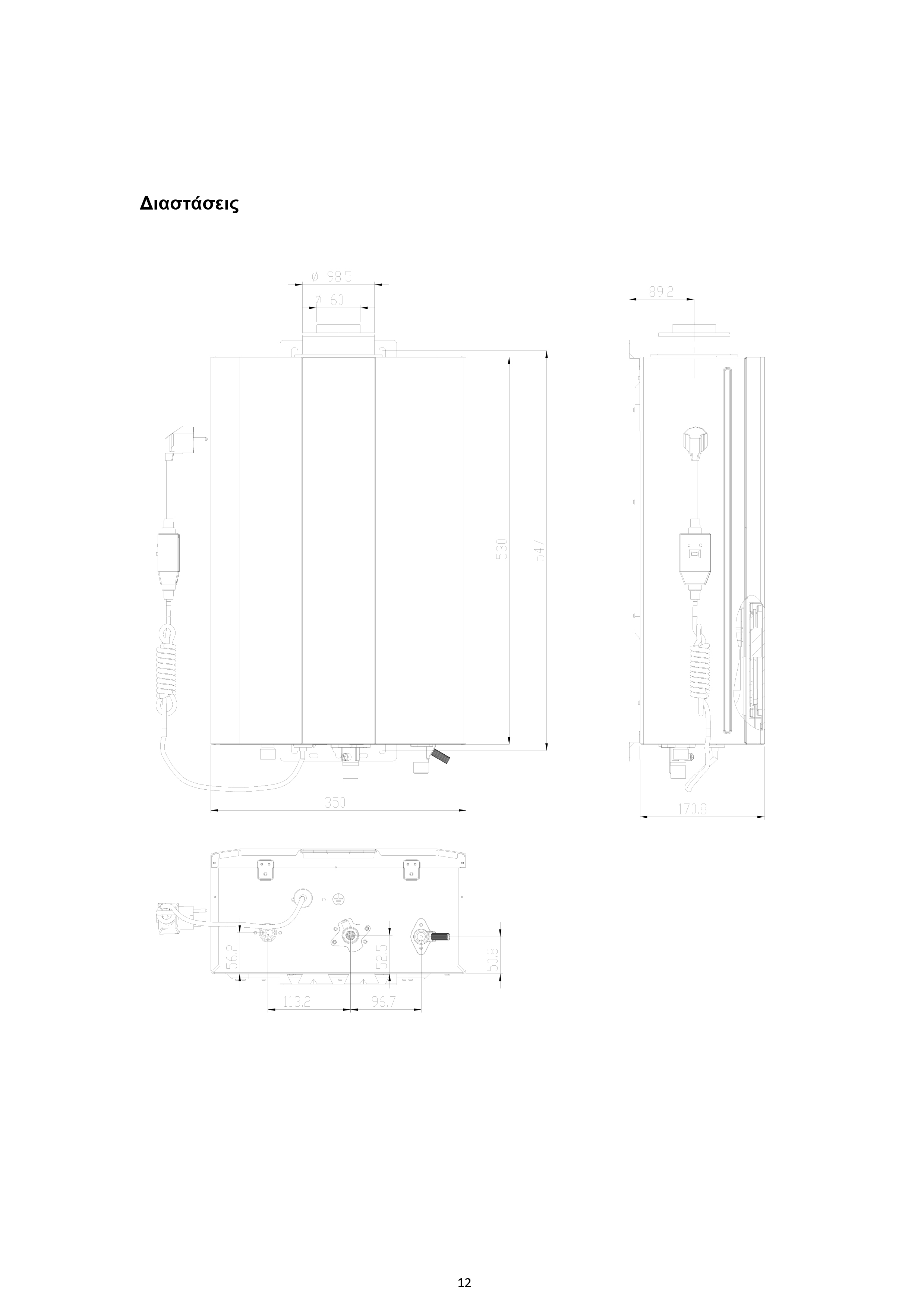

| Net Length: | 35 cm |
| Net Height: | 53 cm |
| Net Depth: | 15 cm |
| Net Weight: | 12,6 kg |
| Gross Length: | 42 cm |
| Gross Height: | 22,5 cm |
| Gross Depth: | 67,5 cm |
| Gross Weight: | 16,1 kg |
